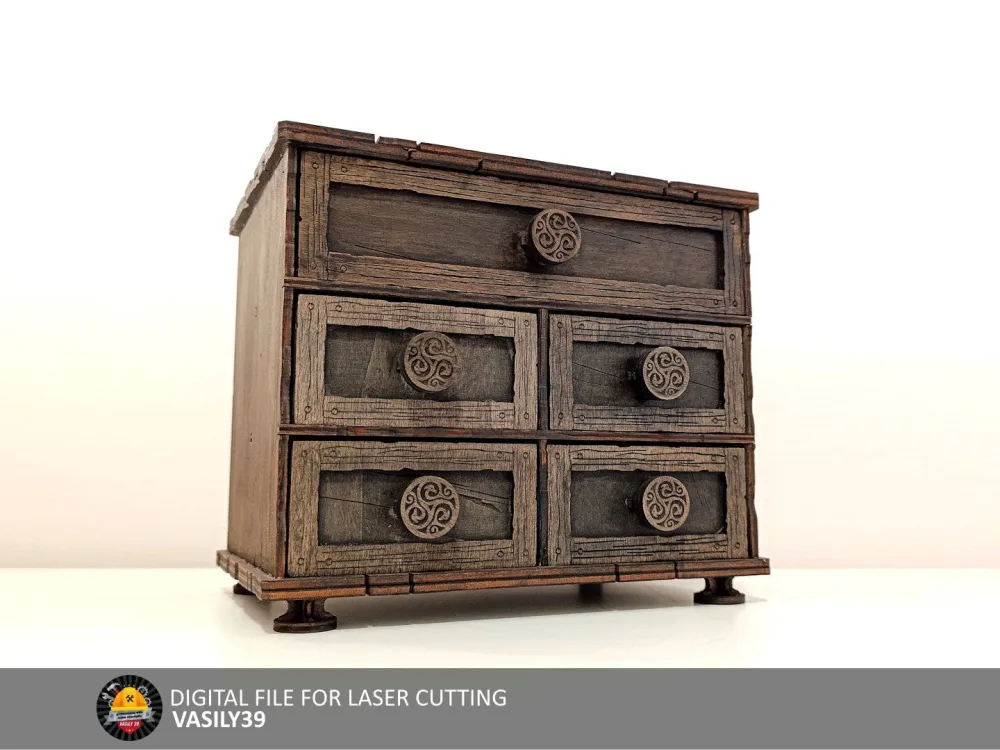

Chest of drawers 00245. Digital files for manufacturing products on a CNC laser machine.
With 5 drawers. This box was designed and drawn by me to store tarot cards. All connections are hidden as much as possible. The double top and bottom make this box durable. Very simple assembly, 10-15 minutes and you're done. Engraving takes some time, but the results are worth it.
large drawer size:
- length: 210mm / 8.26" (inner)
- width: 140mm / 5.51" (inner)
- height: 50mm / 1.96" (inner)
small drawer size:
- length: 100mm / 3.93" (inner)
- width: 140mm / 5.51" (inner)
- height: 50mm / 1.96" (inner)
approximate external dimensions (depending on material thickness):
- length: 241mm / 9.48" (outter)
- width: 170mm / 6.70" (outter)
- height: 210mm / 8.26"Â (outter)
Painting method:
1. Dilute black acrylic paint with water 1 (paint) to 4 (water).
2. Apply paint to the product and let dry.
3. Sand it with sandpaper.
4. Apply a thin layer of glaze or stain (rosewood color) and let dry.
5. If raised wood fibers appear, treat with fine sandpaper.
6. Coat with clear water-based varnish.
7. Treat with paraffin (a regular candle) the parts of the drawers that come into contact with the base - for better sliding.
kerf (cut compensation): 0.15mm and 0
- ¢ Design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
- ¢ Digital product includes: CDR, SVG, PDF, AI
ATTENTION: This is a digital product (vector blueprints) for manufacturing on a laser machine. No physical item will be shipped.
This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
